LUM-430M

Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

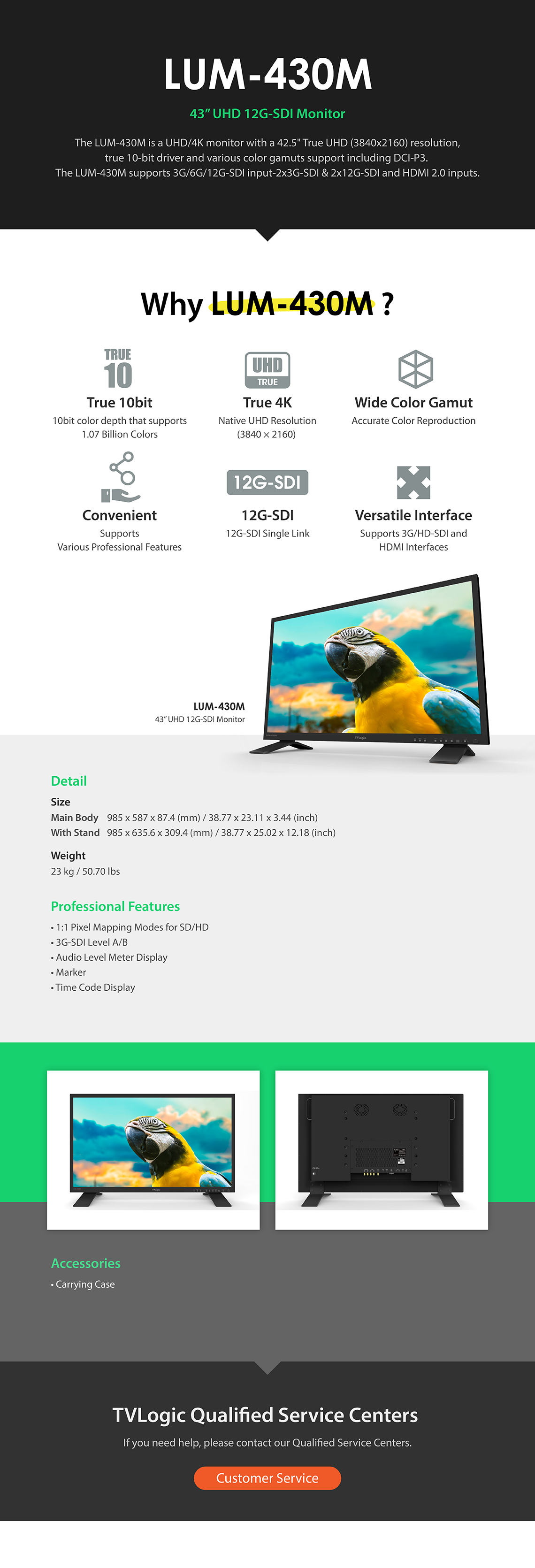

LUM-430M : 42.5Inch UHD 12G-SDI Monitor
The LUM-430M is a UHD/4k monitor with a 42.5"True UHD(3840X2160) resolution, true 10-bit drivers and various color gamuts support including DCI-P3. The LUM-430M supports 3G/6G/12G-SDI input-2x3G-SDI & 2x12G-SDI and HDMI 2.0 inputs
Display Spec.
 Size  42.5"
 Resolution  3840 X 2160 (16:09)
 Pixe Pitch  0.245mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  350cd/m2
 Contrast Ratio  1,000 : 1
 Display Area  962(H) x 554(V) mm
Input
 4 X BNC  12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
 1 X HDMI  HDMI Input
Output
 4 X BNC  HD SDI A/B/C/D Channel Output
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Marker,  Time Code Display
Closed Caption
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB cable   Firmware update by USB memory stick
 Ethernet
 Conversion   SDI-to-SDI,
Options
  Carring Case,
