LUM-318G

  • LUM-318G
  • LUM-318G
  • LUM-318G



Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

HDR Emulation

HDR EmulationHDR Emulation

The HDR emulation function allows users to check how an HDR image will look at the shooting location. Adjustable modes are PQ, HLG and SLog3.

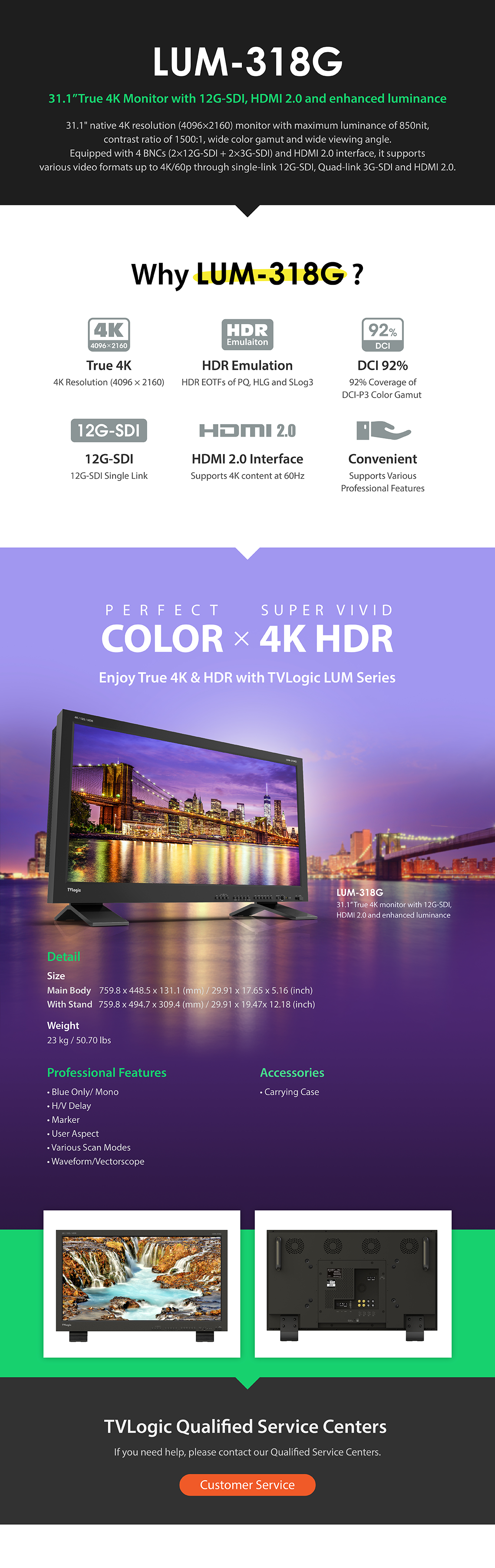

LUM-318G : 12G-SDI 및 HDMI 2.0을 지원하는 31인치 True 4K 모니터
LUM-318G는 31.1" Native 4K (4096×2160) 해상도와 최대 850nit의 밝기, 1450:1의 명암비, Wide Color Gamut과 광시야각을 가진 제품입니다. 4개의 BNCs (12G-SDI 2개, 3G-SDI 2개) 단자와 HDMI2.0 단자를 갖추었으며, 최대 4K/60p 영상을 지원합니다. Waveform Monitor, Vectorscope 등의 편의 기능은 물론, HDR Emulation 기능을 통해 PQ, HLG, SLog3를 지원합니다. 추후 펌웨어 업데이트를 통해 다양한 Gamma들이 지원될 예정입니다.
Display Spec.
 Size  31.1"
 Resolution  4096 X 2160 (17:9)
 Pixe Pitch  0.1704mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  850cd/m2
 Contrast Ratio  1,450:1
 Display Area  698(H) x 368(V) mm
Input
 4 X BNC  12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
 1 X HDMI  HDMI Input
Output
 4 X BNC  HD SDI A/B/C/D Channel Output
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  Blue Only,  H/V Delay,  Marker,  Mono,  User Aspect,  Various Scan Modes,  Waveform/Vector
Closed Caption
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB cable   Firmware update by USB memory stick
 Ethernet
 Conversion   SDI-to-SDI,
Options
  Carring Case,
LUM-318G : 12G-SDI 및 HDMI 2.0을 지원하는 31인치 True 4K 모니터

LUM-318G : 12G-SDI 및 HDMI 2.0을 지원하는 31인치 True 4K 모니터
  Pronduct Brochure (1 Page)    -
  Manual   Download
  Leaflet    -
  Total Brochure   Download
