SRM-095W-N

  • SRM-095W-N
  • SRM-095W-N
  • SRM-095W-N



SRM-095W-N

Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

H/V Flip

H/V FlipH/V FlipH/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.

Key Lock

Locks the knob or key control.

Luma(Y') Zone Check

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Range Error

Range ErrorRange Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Zoom

ZoomZoom

Magnifies the input signal from 0% to 90%.

Camera Lut.

Camera Lut.Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

UMD

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

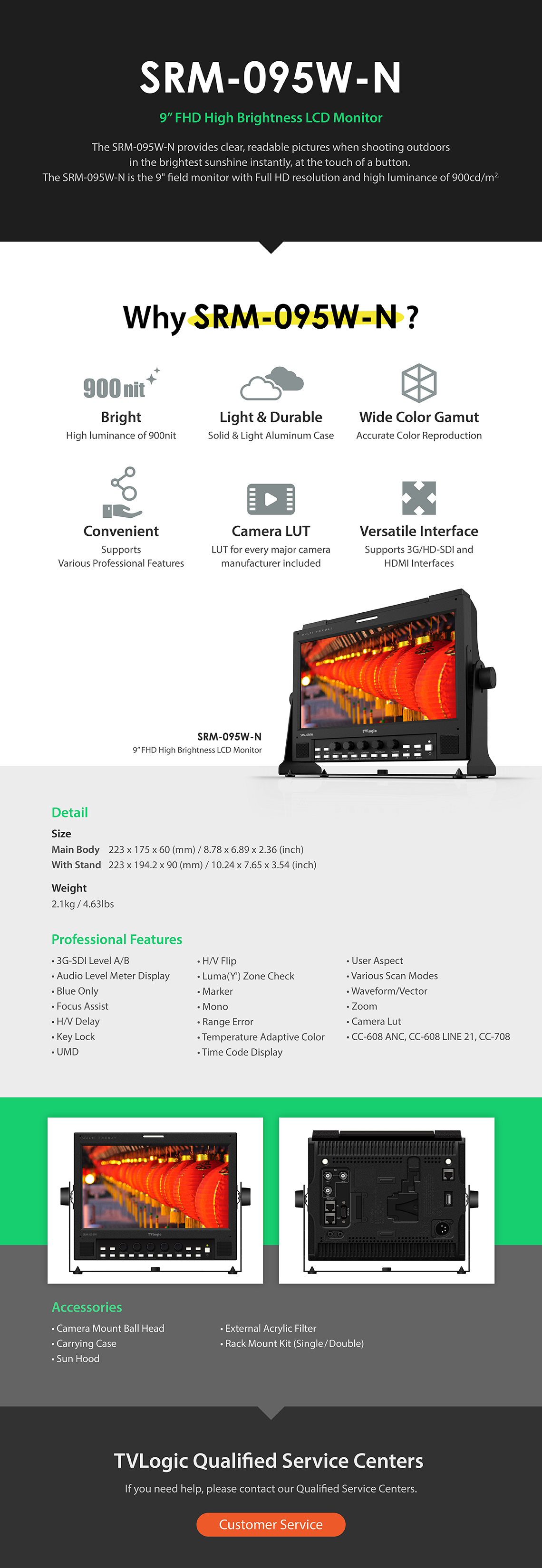

SRM-095W-N : 800nit의 휘도의 필드모니터
SRM-095W-N은 Full HD 해상도를 갖춘 9인치 모니터로 버튼 조작만으로 최대 800nit의 휘도를 구현할 수 있는 촬영 현장용 고휘도 모니터입니다. 고강도 알루미늄 케이스를 채용하여 가벼우면서도 강성이 뛰어나며, 다양한 컨트롤 키를 배치하여 쉽고 빠르고 직관적인 사용이 가능합니다. 3G-SDI와 HDMI 입력 및 출력 단자를 갖추었으며,마커/웨이브폼/벡터스코프/포커스 어시스트 등 다양한 전문가 기능을 탑재하고 있습니다.
Display Spec.
 Size  9"
 Resolution  1920 X 1080 (16 : 9)
 Pixe Pitch  0.1035mm
 Color Depth  16.7M
 Viewing Angle  176°(H) / 176°(V)
 Luminance  900cd/m2
 Contrast Ratio  750 : 1
 Display Area  199(H) x 111(V) mm
Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  Analog Output (Composite)
 2 X BNC  3G-SDI Out
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Temperature Adaptive Color,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
Other Functions
 USB   Firmware update by USB cable
 Ethernet
 Conversion   HDMI-to-SDI,  SDI-to-SDI,
Options
  Camera Mount Ball Head,  Carring Case,  External Acrylic Filter,  Rack Mount Kit(Double),  Rack Mount Kit(Single),  Sun Hood,
