VFM-055A

  • VFM-055A
  • VFM-055A
  • VFM-055A



Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

H/V Flip

H/V FlipH/V FlipH/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.

Key Lock

Locks the knob or key control.

Luma(Y') Zone Check

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Max Brightness On/Off

Max Brightness On/OffMax Brightness On/Off

Displays the brightness increases from the normal up to max brightness to obtain a sharp and bright image when shooting outdoors.

Range Error

Range ErrorRange Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Zoom

ZoomZoom

Magnifies the input signal from 0% to 90%.

Camera Lut.

Camera Lut.Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).

ARRI Alex Metadata over SDI

ARRI Alex Metadata over SDIARRI Alex Metadata over SDI

Takes the Metadata from the ARRI ALEXA is transported through the SDI outputs of the camera, and displays it on the monitor.

Split Zoom

Split ZoomSplit Zoom

Zooms the specified area sequentially.

Anamorphic Desqueeze

Anamorphic DesqueezeAnamorphic DesqueezeAnamorphic Desqueeze

Supports several formats and resolutions that are ideally suited for anamorphic lenses and aspect ratios. When shooting anamorphic the image you are monitoring is an “unsqueezed” preview of what’s actually being recorded.

Sleep Mode

Sets the LUMINANCE to the minimum value when the time set in the still image output is exceeded.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

HDR Emulation

HDR EmulationHDR Emulation

The HDR emulation function allows users to check how an HDR image will look at the shooting location. Adjustable modes are PQ, HLG and SLog3.

Custom 3D LUT Import

Custom 3D LUT ImportCustom 3D LUT ImportCustom 3D LUT Import

Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.

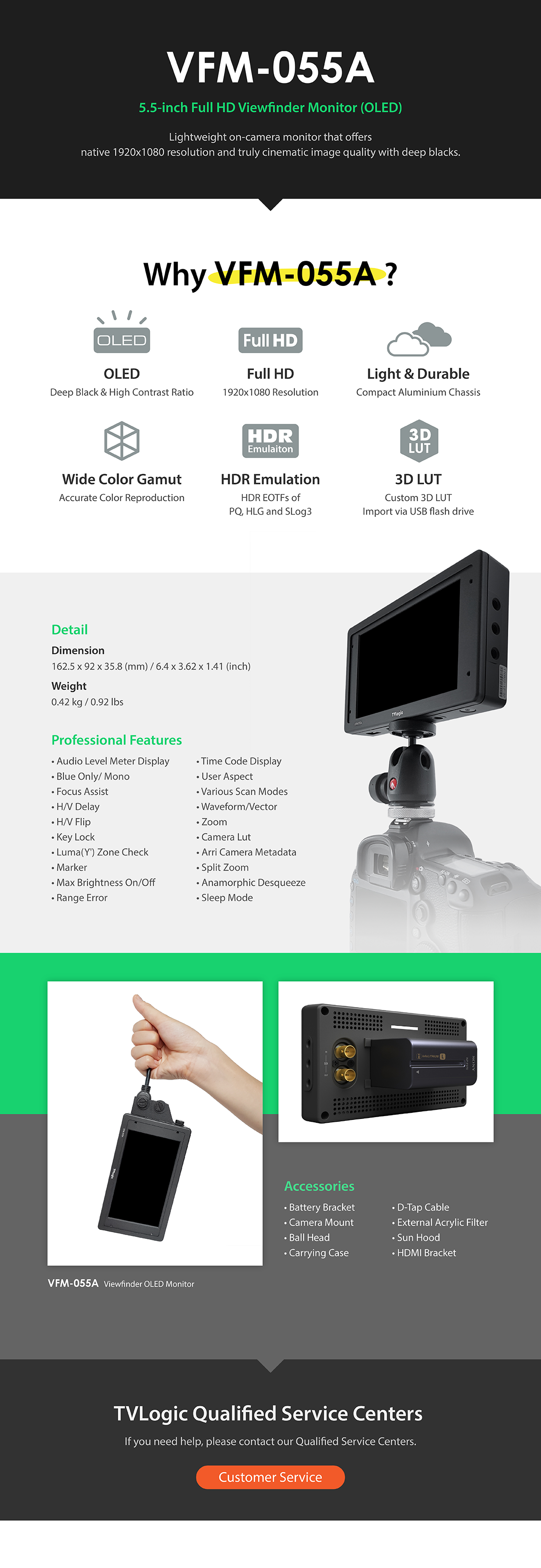

VFM-055A : 5.5 OLED 모니터.
VFM-055A는 Full HD 해상도의 최신 5.5인치 OLED 패널을 장착한 뷰파인더 모니터입니다. 높은 명암비와 넓은 색역, 넓은 시야각 등 우수한 화질을 제공하며 다양한 영상포맷을 지원합니다. 3G-SDI와 HDMI 1.4 인터페이스를 지원하며, HDMI-SDI 상호 변환출력 기능, 웨이브폼 및 벡터스코프, 마커, 포커스 어시스트, 오디오 레벨미터, 각종 카메라 로그 등 다양한 기능을 갖추었습니다.
Display Spec.
 Size  5.5"
 Resolution  1920 X 1080 (16 : 9)
 Pixe Pitch  0.063mm
 Color Depth  16.7M
 Viewing Angle  160°(H) / 160°(V)
 Luminance  350cd/m2
 Contrast Ratio  17000 : 1
 Display Area  121(H) × 68(V) mm
Input
 1 X BNC  3G-SDI A Channel Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  3G-SDI Out
 1 X HDMI  HDMI OUT
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.,  Arri Camera Metadata
Closed Caption
Calibration
Other Functions
 USB   Firmware update by USB cable   Firmware update by USB memory stick
 Ethernet
 Conversion   HDMI-to-HDMI,  HDMI-to-SDI,  SDI-to-HDMI,  SDI-to-SDI,
Options
 Battery Bracket,  Camera Mount Ball Head,  Carring Case,  D-Tap Cable,  External Acrylic Filter,  Sun Hood,
