SWM-171A

  • SWM-171A
  • SWM-171A
  • SWM-171A



SWM

Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

UMD

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

SWM-171A : 새로운 스튜디오 월 모니터
SWM 시리즈는 스튜디오 월 모니터로 파워 버튼을 제외한 모든 버튼을 모니터 옆면에 배치해 모니터 전면 버튼 램프에서 발생하는 빛을 최소화하여 스튜디오나 중계차에서의 모니터링에 최적화하였습니다. 또한 HD 표준의 색역(Rec. 709)과 넓은 시야각을 제공하며 3G-SDI와 HDMI 등의 다양한 입력단자도 갖추었습니다. 이외에도 SFP 광 모듈을 옵션으로 장착할 수 있어 첨단 장비와의 호환성을 극대화 하였으며 Waveform/Vectorscope, Audio Level Meter 등 월 모니터에 필요한 부가 기능도 제공합니다.

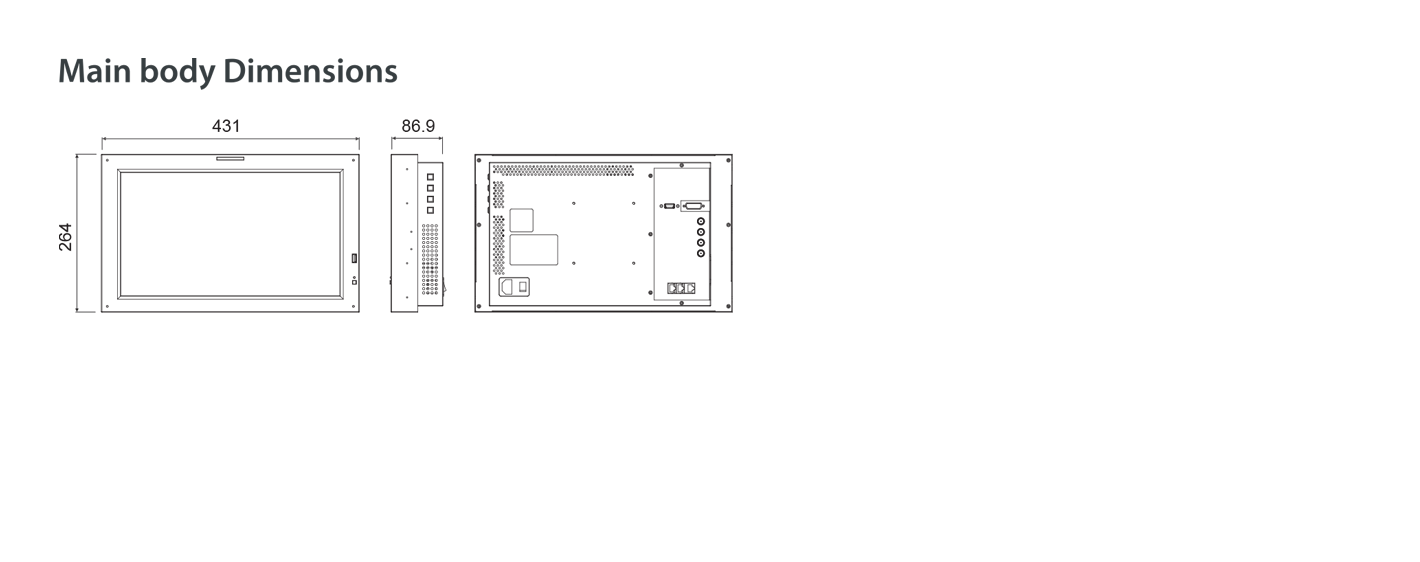

Display Spec.
 Size  16.5"
 Resolution  1920 X 1080 (16 : 9)
 Pixe Pitch  0.1905mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  450cd/m2
 Contrast Ratio  1400:1
 Display Area  366(H) x 206(V) mm
Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 2 X BNC  3G-SDI Out
Audio
 Audio Out  -
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  H/V Delay,  Marker,  Mono,  Time Code Display,  UMD,  User Aspect
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR,  OP42,  OP47
Calibration
Other Functions
 USB   AUTO Calibration   Firmware update by USB cable   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
 Conversion   SDI-to-SDI,
Options
  ND Acrylic Filter,  Rack Mount Kit(Single),
SWM-171A : 새로운 스튜디오 월 모니터
SWM-171A : 새로운 스튜디오 월 모니터
