LUM-171G

  • LUM-171G
  • LUM-171G
  • LUM-171G



LUM-171G

Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

HDR Emulation

HDR EmulationHDR Emulation

The HDR emulation function allows users to check how an HDR image will look at the shooting location. Adjustable modes are PQ, HLG and SLog3.

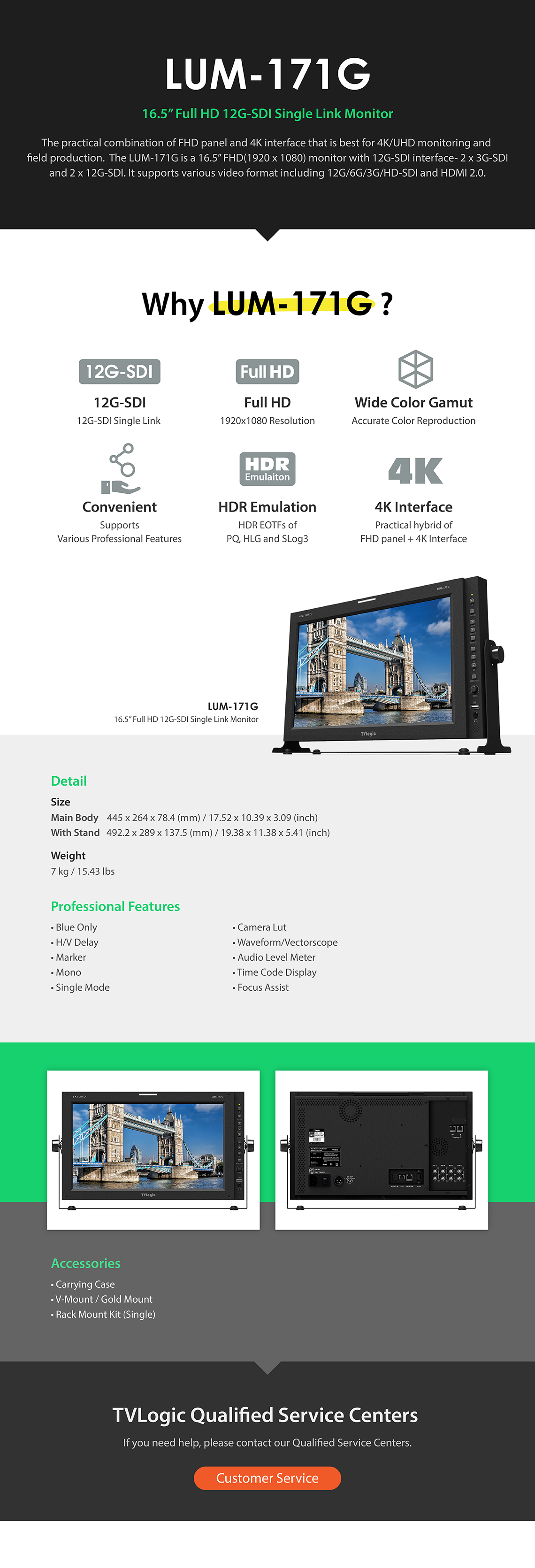

LUM-171G : 12G-SDI 1라인으로 4K를 지원.
LUM-171G는 새로운 12G-SDI를 지원하는 모니터 입니다. LUM-171G는 FHD 패널을 사용하며 4K인터페이스를 지원하여 필드에서 효율적으로 사용할 수 있습니다.
Display Spec.
 Size  16.5"
 Resolution  1920 X 1080 (16 : 9)
 Pixe Pitch  0.1905mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  450cd/m2
 Contrast Ratio  1400:1
 Display Area  366(H) x 206(V) mm
Input
 4 X BNC  12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
 1 X HDMI  HDMI Input (HDMI 2.0)
Output
 4 X BNC  12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out)
Audio
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  Blue Only,  H/V Delay,  Marker,  Mono,  Camera Lut.
Closed Caption
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB   AUTO Calibration   Firmware update by USB cable   Firmware update by USB memory stick
 Ethernet
 Conversion   SDI-to-SDI,
Options
  Carring Case,  Gold Mount,  Rack Mount Kit(Single),  V-Mount
LUM-171G : 12G-SDI 1라인으로 4K를 지원.
LUM-171G : 12G-SDI 1라인으로 4K를 지원.
  Pronduct Brochure (1 Page)   Download
