LVM-095W-N

  • LVM-095W-N
  • LVM-095W-N
  • LVM-095W-N



LVM-095W-N

Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

H/V Flip

H/V FlipH/V FlipH/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.

Key Lock

Locks the knob or key control.

Luma(Y') Zone Check

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Range Error

Range ErrorRange Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Zoom

ZoomZoom

Magnifies the input signal from 0% to 90%.

Camera Lut.

Camera Lut.Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

UMD

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

LVM-095W-N : 9인치 Full HD 방송용 모니터
LVM-095W-N는 기존의 9인치 모니터를 Full HD 해상도 패널로 업그레이드시킨 포터블 모니터로 스튜디오나 촬영 현장에서의 모니터링에 이상적인 제품입니다. LVM-095W-N는 가볍고 튼튼한 알루미늄 소재로 만들어졌으며 전면 컨트롤 패널에 기능키와 5개의 컨트롤 노브가 배치되어 있고 랙 마운트 키트에 장착하여 사용이 가능하므로 우수한 공간효율성을 자랑합니다. 또한 더블 탈리, Waveform 및 Vectorscope, UMD, 1:1 Pixel Mapping, Range Error, Marker, Focus Assist 등 전문가를 위한 다양한 부가 기능을 제공하며 V-Mount가 기본 장착되어 있어 별도의 배터리 브라켓 없이도 배터리 장착이 가능해 활용성과 경제성이 극대화된 제품입니다.
Display Spec.
 Size  9"
 Resolution  1920 X 1080 (16 : 9)
 Pixe Pitch  0.1035mm
 Color Depth  16.7M
 Viewing Angle  176°(H) / 176°(V)
 Luminance  400cd/m2
 Contrast Ratio  750:1
 Display Area  199(H) x 112(V) mm
Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  Analog Output (Composite)
 1 X BNC  3G-SDI Out
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Temperature Adaptive Color,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
Other Functions
 USB   Firmware update by USB cable
 Ethernet
 Conversion   HDMI-to-SDI,  SDI-to-SDI,
Options
  Camera Mount Ball Head,  Carring Case,  External Acrylic Filter,  Rack Mount Kit(Double),  Rack Mount Kit(Single),  Sun Hood,
LVM-095W-N : 9인치 Full HD 방송용 모니터

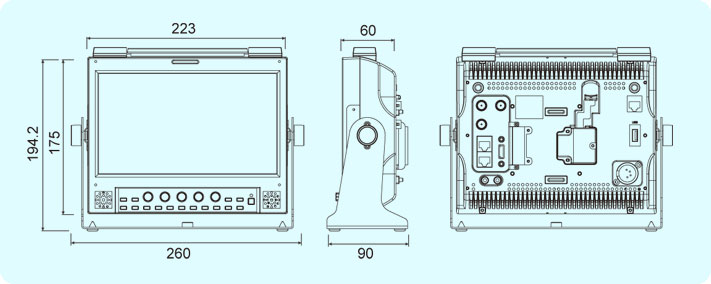

- Main Body : 223 x 175 x 60 (mm) / 8.78 x 6.89 x 2.36 (inch)
- With stand : 260 x 194.2 x 90 (mm) / 10.24 x 7.65 x 3.54 (inch)
- Weight : 2.1Kg / 4.63lbs


LVM-095W-N : 9인치 Full HD 방송용 모니터
  Pronduct Brochure (1 Page)   Download
