VFM-056W

  • VFM-056W
  • VFM-056W
  • VFM-056W



.

Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Luma(Y') Zone Check

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Range Error

Range ErrorRange Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Zoom

ZoomZoom

Magnifies the input signal from 0% to 90%.

VFM-056W : 가볍고 컴팩트한 디자인의 5.6’’ 뷰파인더 모니터
VFM-056W/WP는 1280x800의 고해상도에 0.3kg 이하의 가벼운 무게를 자랑하는 HDSLR용 5.6" 뷰파인더 모니터 입니다. VFM-056W의 혁신적이고 사용자 편의를 고려한 인체공학적 디자인과 견고하고 가벼운 마그네슘 재질의 케이스는 실내 및 실외 촬영 시 편안하고 편리한 사용조건을 제공합니다. 광범위한 입력신호(3G/HD/SD-SDI, HDMI, Composite,Component, S-Video)를 지원하며 PAL, NTSC, SECAM과 같은 다양한 비디오 신호 포맷을 지원합니다. 이외에도 DSLR Scale, Focus Assist, Scan, Marker, Audio Level Meter, 스피커, Time code Display와 같은 다양하고 유용한 사용자 중심의 편의 기능들을 제공하며 프리미엄 모델인 VFM-056WP모델은 HDMI-to-SDI 변환 출력(720p), Waveform, Vectorscope, Luma(Y') Zone Check, Range Error와 같은 고급기능을 제공 합니다.
VFM-056W : 가볍고 컴팩트한 디자인의 5.6’’ 뷰파인더 모니터

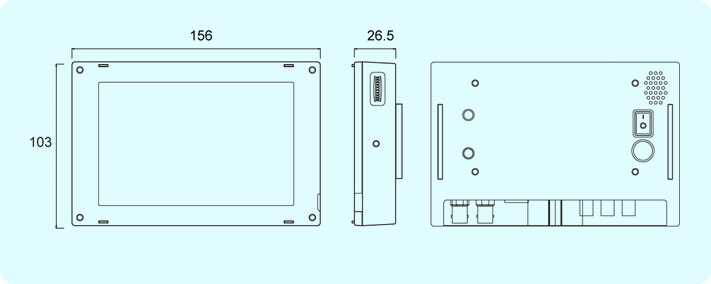

- Main Body :
156 x 103 x 26.5 (mm) / 6.14 x 4.06 x 1.04 (inch)
- Weight : 0.3kg / 0.66lbs
VFM-056W : 가볍고 컴팩트한 디자인의 5.6’’ 뷰파인더 모니터
